£15.46 ex VAT

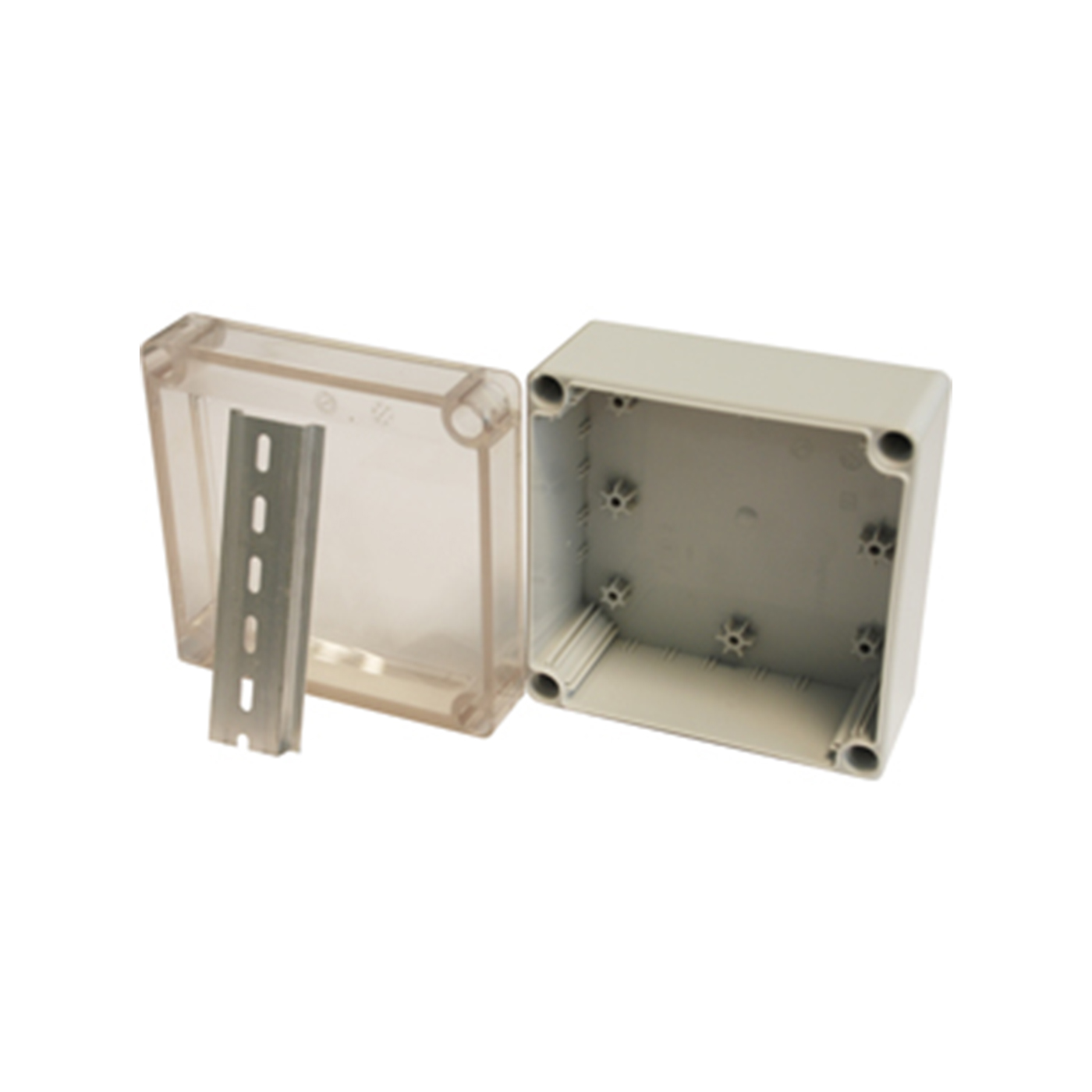

Manufactured from flame retardant ABS to UL94-HB, our range of BN junction boxes are manufactured to a very high quality which can endure high impact. A Solid wall thickness of between 3 & 4mm makes these enclosures incredibly tough and durable. Each one is moulded with internal mounting stand-offs and vertical PCB mounting slots. IP66 and IK08 Rated
| Length mm | Width mm | Height mm | Weight kg |
|---|---|---|---|
| 125 | 125 | 75 | 0.2916 |
| 1-49 | 50-100 | 101+ |
| £15.46 | £14.69 | £13.91 |
| Dimensions | 125 × 125 × 75 mm |
|---|---|
| Weight | 0.2916 kg |
| Colour | Grey/Transparent |
| Material | ABS/Polycarbonate |
| IP Rating | IP66 |
| Comes With | 35mm DIN Rail Section & Mounting Screws, Captive Screws, PCB Mounting Slots |
| Temperature Range | -10°C to +80°C |
| IK Rating | IK80 |
| Part Number | BN12T |
| Spec Sheet | IP66-BN-Enclosures.pdf |
| Category | IP 66 / 67 Enclosures |
